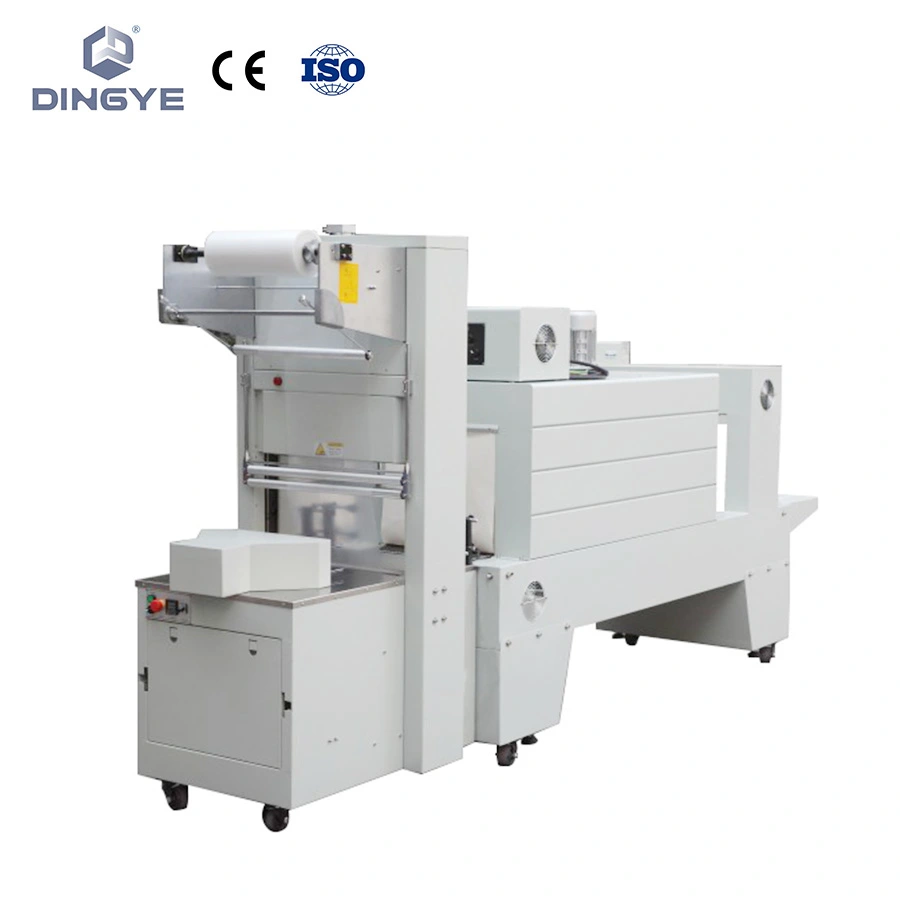

Semi-Auto Sleeve Wrapping Machine BZJ5038B & BSE5040A
The Semi-Auto Sleeve Wrapping Machine BZJ5038B+BSE5040A is a semi-automatic shrink wrapping system designed for packaging bottles, cans, and boxes using PE film. It combines high efficiency with easy operation and is suitable for medium-scale production lines. The machine can work independently or be integrated with a production line for automatic packaging.
It uses advanced temperature control and a powerful hot air circulation system to ensure uniform shrinkage and excellent packaging results. The stainless steel heating system provides durability and stable performance, while the conveyor is built to handle heavy loads.
description
Product Features
-
Semi-Automatic Operation: Easy to use with manual film feeding and automatic sealing, cutting, and shrinking.
-
Durable Construction: Made with high-quality steel and heat-resistant components for long-term reliability.
-
Energy Efficient: Equipped with an efficient hot air circulation system for fast and uniform shrinkage.
-

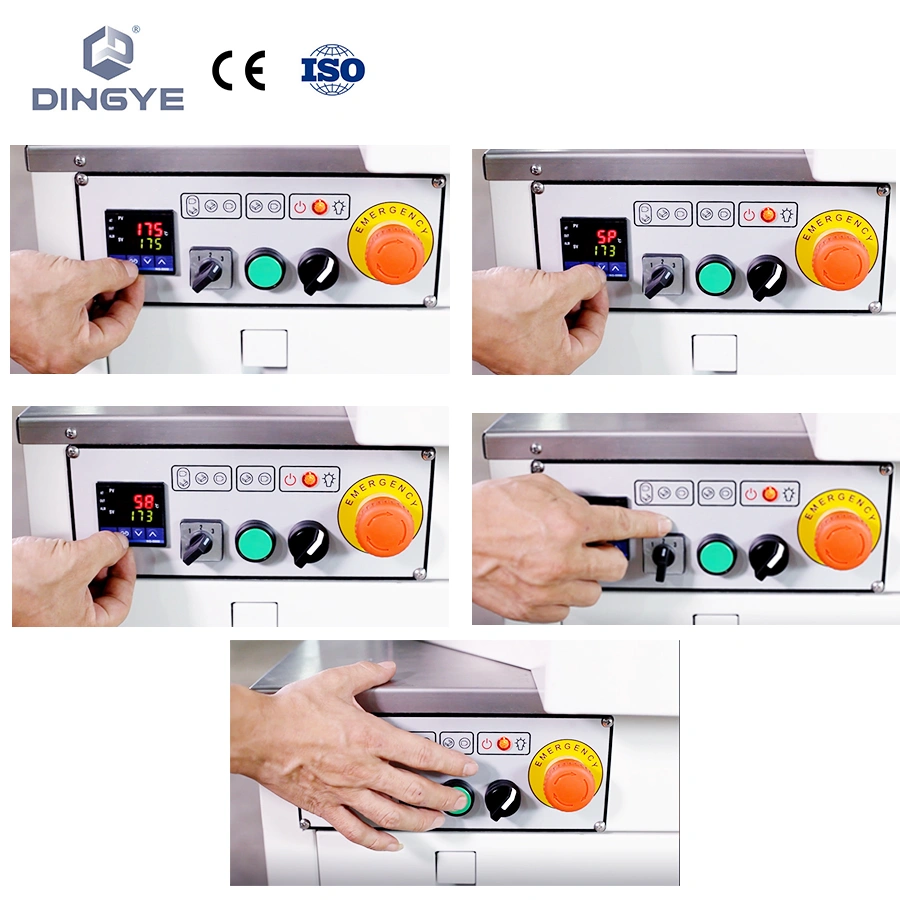

Adjustable Settings: Temperature and conveyor speed can be adjusted for different product sizes.
-

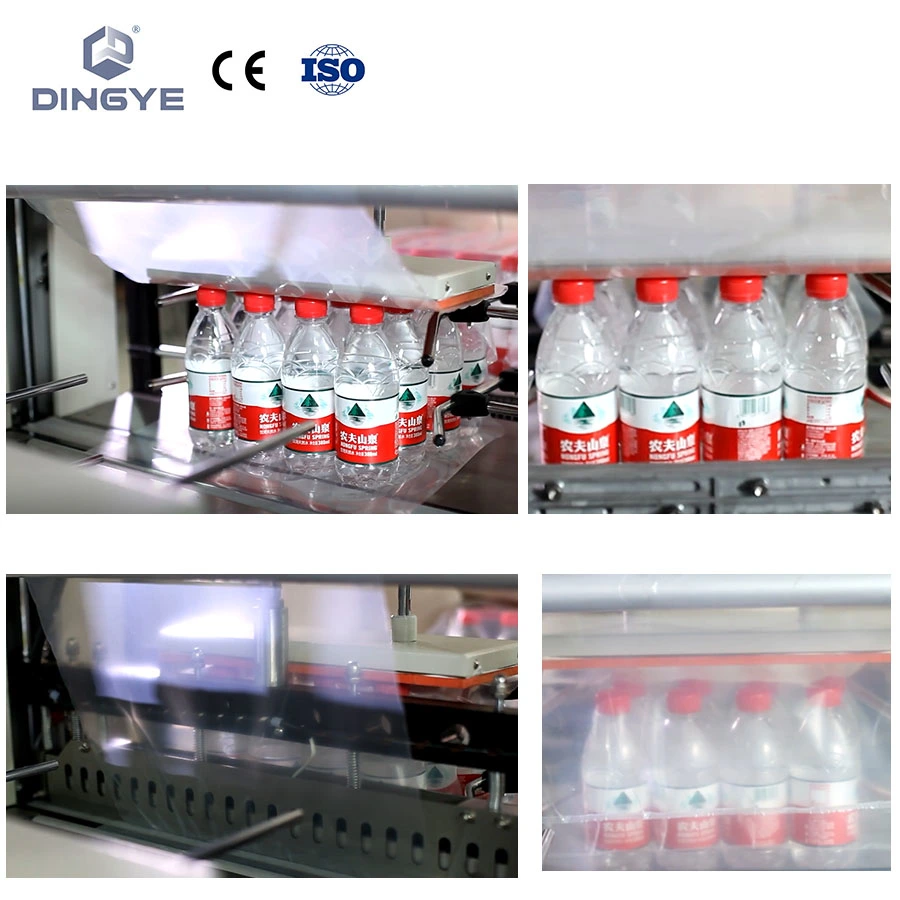

Wide Application: Ideal for packaging bottled water, beverages, cans, and cartons.
-
Optional Stainless Steel Model: For food and beverage industries requiring hygiene standards.
Technical Specifications
| Model | BZJ-5038B(Pneumatic) | Model | BSE -5040A |
| Power supply | 220-240V, 50-60Hz;1.8KW | Power supply | 3phase 220V/380V 50-60HZ |
| Capacity | 300-400pcs/hour | Heater power | 20KW |
| Sealing time/shrink time | 0.5-1.5s, 0-0.6s | Conveyer speed | 0 -10m /minute |
| Conveyor loading | 30kg | Tunnel size(L*W*H) | 1500*500* 400mm |
| Film thickness | 0.03 -0.12mm | Conveyer loading | 50KGS Max. |
| Max. packing dimension(L*W*H) | 450 x 270 x 350mm | Machine size | 2500*820* 1680mm |
| Min. packing dimension(L*W*H) | 250 x 60 x 60mm | Machine weight | 470KGS |
| Machine size(L*W*H) | 1020 x 830 x 1980mm | Shrink film | PE,POF,PVC,PP |
